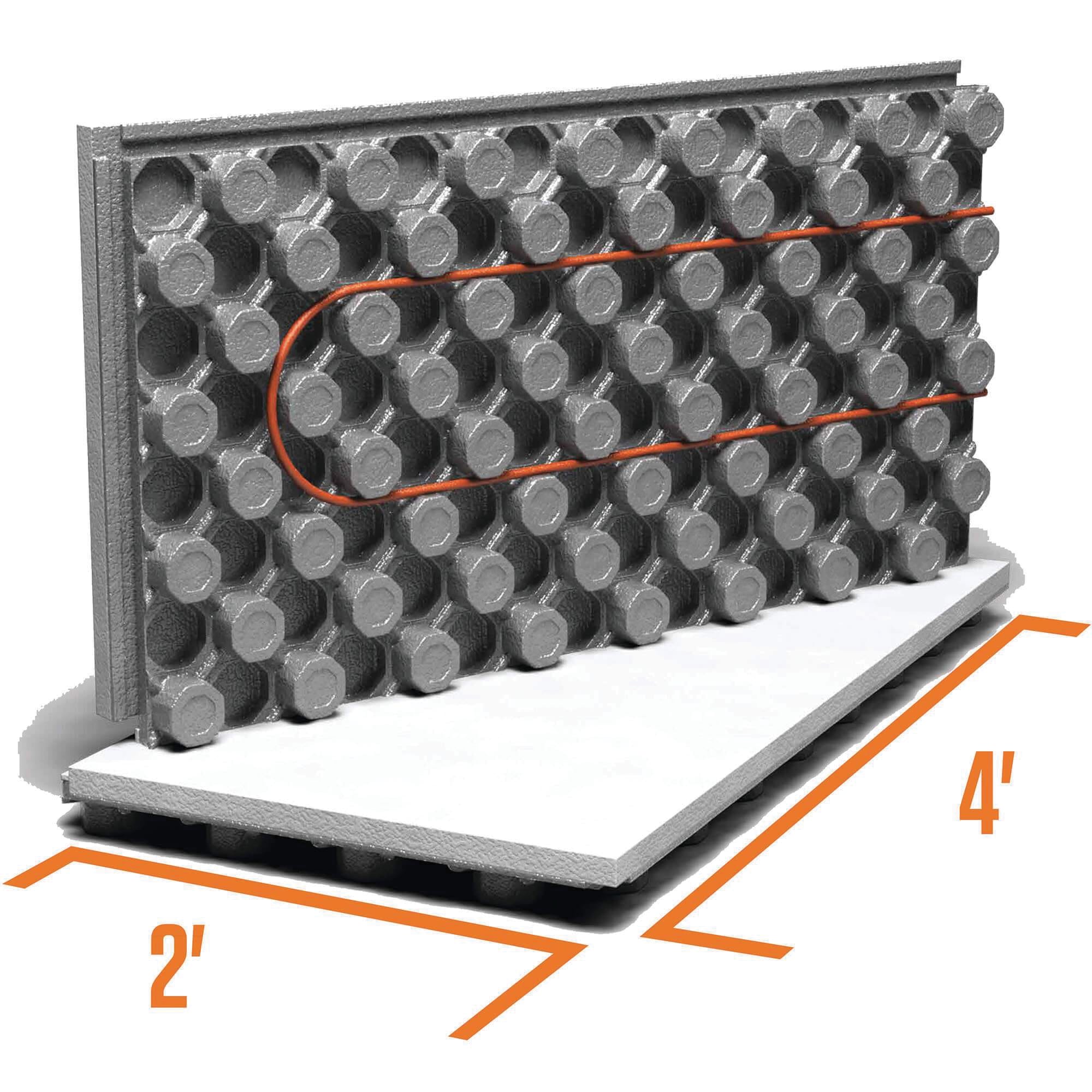

AMVIC Insulated Radiant Floor Heating Foam Panel Board R10, 45 Psi (Driveway)

$19.99

The combination of molding expanded polystyrene (EPS) insulation, one of the highest performing energy efficient insulation materials available today, with a High Impact Polystyrene (HIPS) film, makes for a strong and resilient Ampex panel. The panel combines rigid insulation, a vapor barrier and PEX tubing locking mechanism into a single solution that significantly reduces installation time.

Four sided interlocking shiplap connectors
HIPS film acts as a vapor barrier and adds durability
Bridge connectors enable better heat distribution
Mushroom nubs firmly locks the tubing in place
Range of R-values and compressive strengths

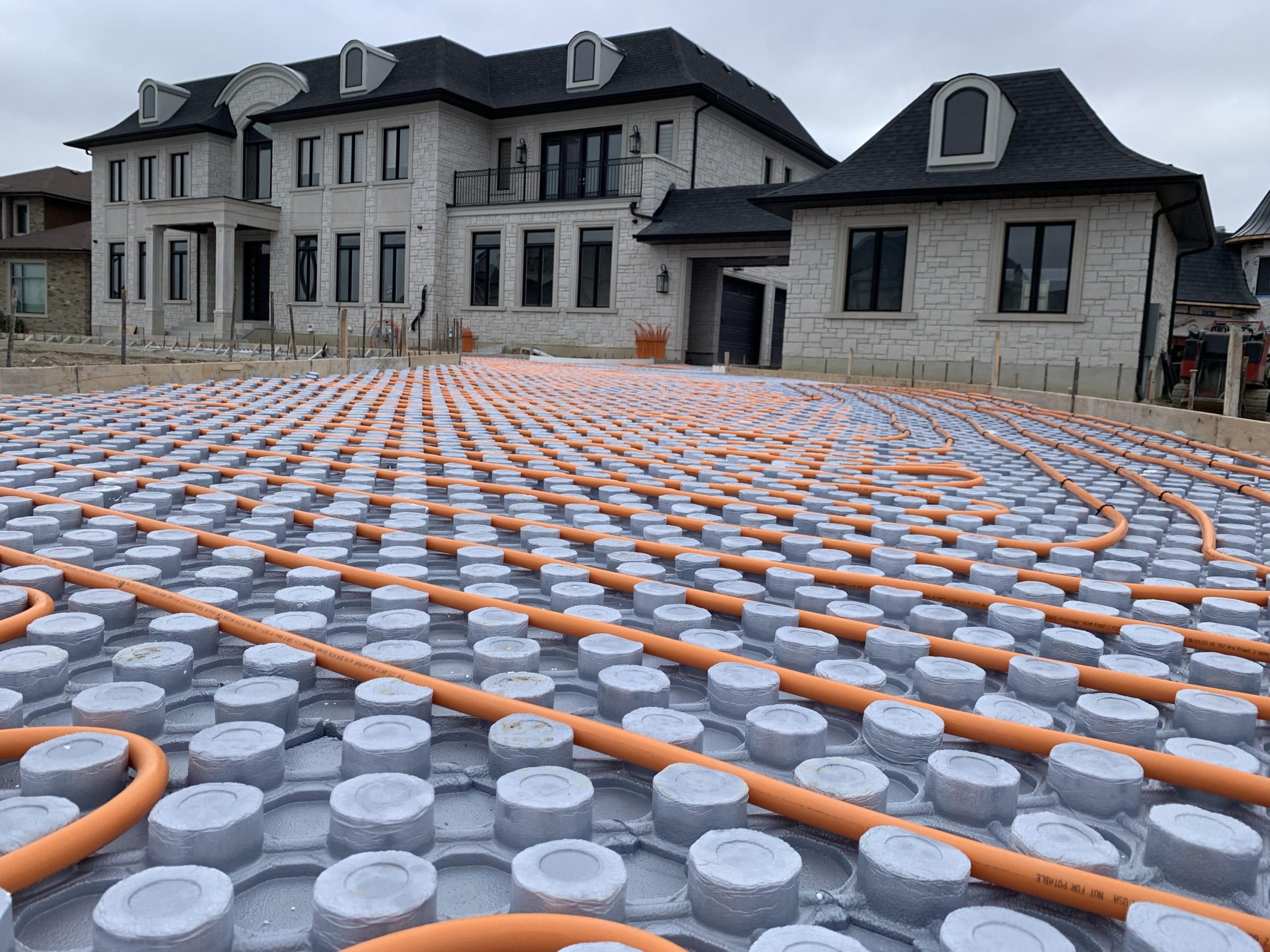

The innovative patented panel design ensures that the tubing is completely encased in concrete and not pushed to the bottom of the panel through the use of bridge connectors. The larger contact area between the tubing and the concrete allows for increased heat transfer reducing the response time of the system and helping achieve desired temperatures faster.
