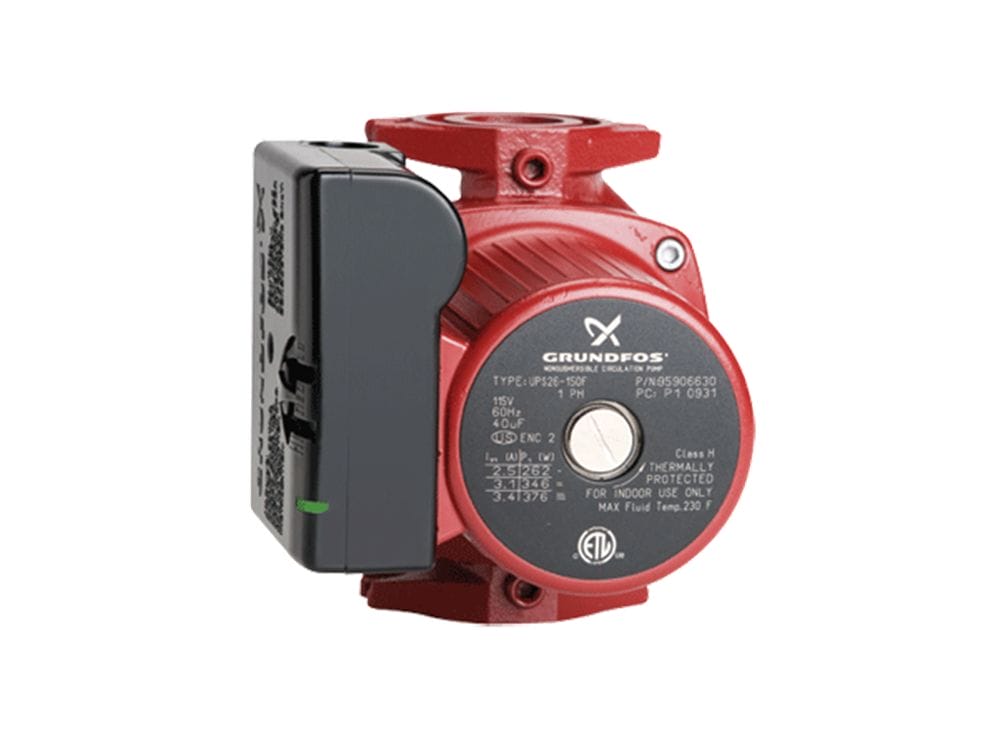

Grundfos Circulator Pump UPS 26-150 FC

Original price was: $1,149.00.Current price is: $999.00.

Product name
UPS 26-150 F
Product No.
95906630
EAN
5700313291670

Technical

Speed Number
3
Rated flow
26.9 US gpm
Max flow
52 US gpm
Rated head
25.37 ft
Maximum head
45.28 ft
Approvals
CETL

Materials

Pump housing
Cast iron
EN 1561 EN-GJL-200
ASTM A48-30B
Impeller
Composite
PES+30% GF

Installation

Maximum ambient temperature
104 °F
Ambient max at 176°F liquid
176 °F
Maximum operating pressure
145.04 psi
Type of connection
2-BOLT FLANGE
Pipe connection
2-BOLT FLANGE
Pressure rating for connection
PN 10
Port-to-port length
6 1/2 in

Liquid

Pumped liquid
Water
Liquid temperature range
35.6 .. 230 °F
Selected liquid temperature
140 °F
Density
61.35 lb/ft³

Electrical data

Power input in speed 1
0.3554 HP
Power input in speed 2
335 W
Max. power input
370 W
Main frequency
60 Hz
Rated voltage
1 x 115 V
Current in speed 1
2.5 A
Current in speed 2
3.1 A
Current in speed 3
3.5 A
Capacitor size – run
40 µF/180 V
Number of poles
2
Insulation class (IEC 85)
H
Built-in motor protection
CONTACT
Thermal protec
INT.

Others

Terminal box position
9H
Net weight
13.9 lb
Gross weight
15.2 lb
Country of origin
US
