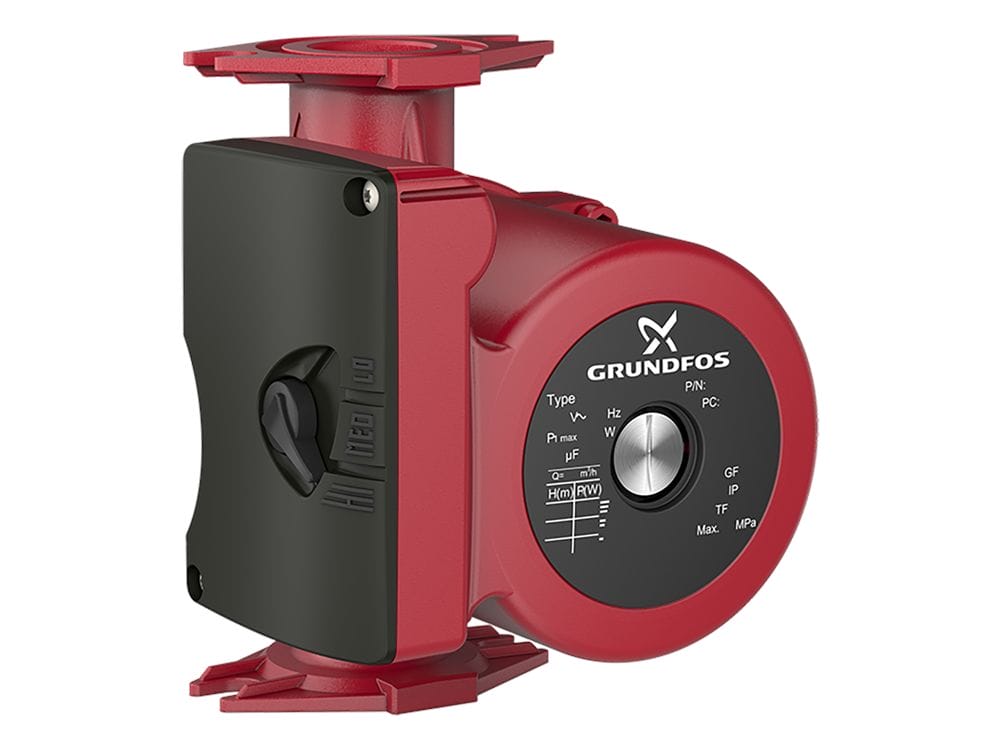

Grundfos Circulator Pump UPS 26-99 FC

$495.00

Product name
UPS 26-99 FC
Product No.
52722512
EAN
5700834818707

Technical

Speed Number
3
Rated flow
17.7 US gpm
Max flow
33 US gpm
Rated head
16.46 ft
Maximum head
28.87 ft
Approvals
CUL
Y = pump with built-in isolating and non-return valves
Y

Materials

Pump housing
Cast iron
EN 1561 EN-GJL-200
ASTM A48-30B
Impeller
Composite
PES+30% GF

Installation

Range of ambient temperature
35.6 .. 104 °F
Ambient max at 176°F liquid
176 °F
Maximum operating pressure
145.04 psi
Type of connection
2-BOLT FLANGE
Pipe connection
2-BOLT FLANGE
Pressure rating for connection
PN 10
Port-to-port length
6 1/2 in

Liquid

Pumped liquid
Water
Liquid temperature range
35.6 .. 230 °F
Selected liquid temperature
140 °F
Density
61.35 lb/ft³

Electrical data

Power input in speed 1
0.2012 HP
Power input in speed 2
179 W
Max. power input
197 W
Main frequency
60 Hz
Rated voltage
1 x 115 V
Current in speed 1
1.3 A
Current in speed 2
1.5 A
Current in speed 3
1.8 A
Capacitor size – run
20 µF/180 V
Number of poles
2
Insulation class (IEC 85)
F
Built-in motor protection
CONTACT
Thermal protec
INT.

Others

Terminal box position
9H
Net weight
9.48 lb
Gross weight
10.2 lb
Country of origin
US
