Sale!

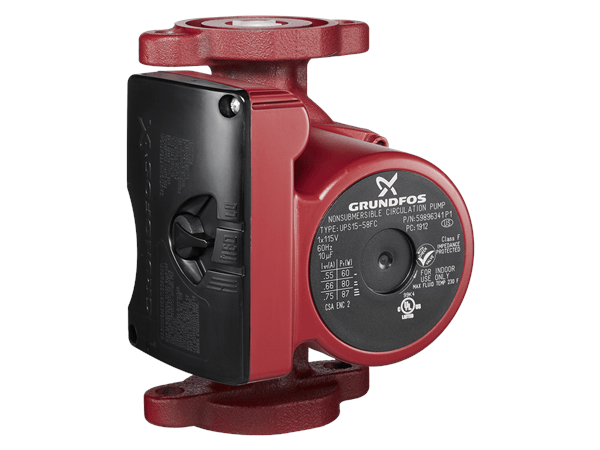

Grundfos Circulator Pump UPS 15-58

$199.00

Product name
UPS 15-58 FC
Product No.
59896341
EAN
5700395855203

Technical

Speed Number
3
Rated flow
8.5 US gpm
Max flow
17.2 US gpm
Rated head
10.47 ft
Maximum head
19.36 ft
Approvals
UL, CSA
Y = pump with built-in isolating and non-return valves
Y

Materials

Pump housing
Cast iron
EN 1561 EN-GJL-200
ASTM A48-25B
Impeller
Composite
PES+30% GF

Installation

Maximum ambient temperature
104 °F
Ambient max at 176°F liquid
176 °F
Maximum operating pressure
145.04 psi
Type of connection
2-BOLT FLANGE
C.I. Flange
Pipe connection
2-BOLT FLANGE
Pressure rating for connection
PN 10
Port-to-port length
6.54 in

Liquid

Pumped liquid
Water
Liquid temperature range
35.6 .. 230 °F
Selected liquid temperature
140 °F
Density
61.35 lb/ft³

Electrical data

Power input in speed 1
0.0805 HP
Power input in speed 2
80 W
Max. power input
87 W
Main frequency
60 Hz
Rated voltage
1 x 115 V
Current in speed 1
0.55 A
Current in speed 2
0.66 A
Current in speed 3
0.75 A
Capacitor size – run
10 µF/180 V
Number of poles
2
Insulation class (IEC 85)
F
Built-in motor protection
CONTACT
Thermal protec
IMP.

Others

Terminal box position
9H
Net weight
6.26 lb
Gross weight
6.75 lb
Country of origin
US
Grundfos Circulator Pump UPS 15-58
$199.00
